Pulp thickner

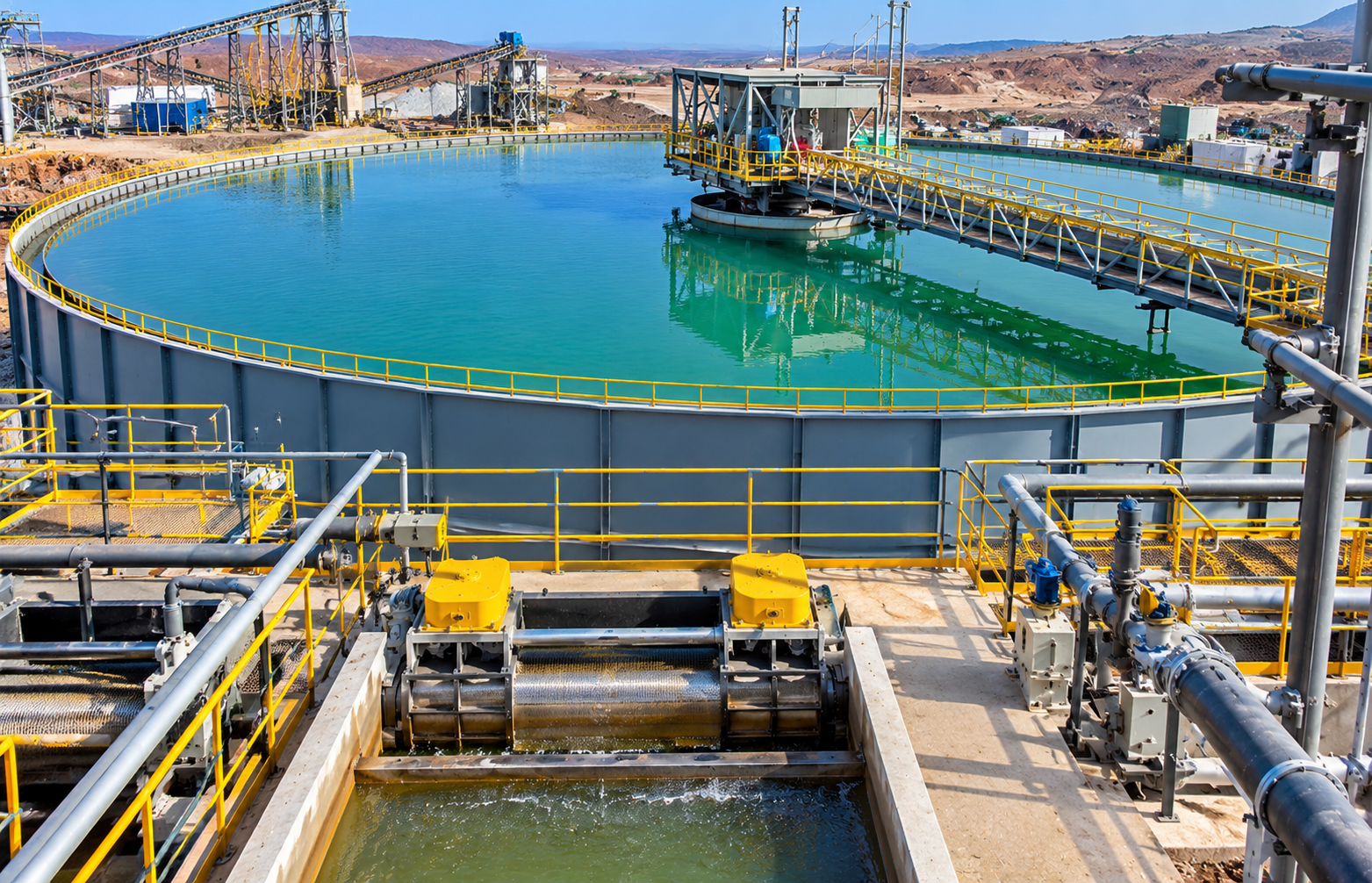

Pulp Thickener is designed for efficient slurry concentration in mineral processing plants. It is widely used for concentrates, middlings and tailings, helping increase pulp concentration for subsequent processing and dewatering operations.
DESCRIPTION
The Pulp Thickener is designed to increase slurry concentration and provide a suitable pulp density for subsequent mineral processing and dewatering operations.
It is commonly used for the treatment of concentrates, middlings and tailings in mineral processing plants. According to the transmission structure, pulp thickeners are generally available in center-drive and peripheral-drive configurations to meet different processing requirements.
The equipment is widely used in mineral processing, metallurgy, chemical processing, coal processing and environmental protection applications.
SPECIFICATIONS
Available in multiple configurations with processing capacities from 5.6 to 3,400 t/d and tank diameters from 1.8 to 53 m to meet different mineral processing and tailings thickening requirements.
| Model | Transmission Type | Tank Diameter (m) | Tank Depth (m) | Capacity (t/d) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| NZS-1 | Centre Drive | 1.8 | 1.8 | 5.6 | 1.1 | 1300 |
| NZS-3 | Centre Drive | 3.6 | 1.8 | 22.4 | 1.1 | 2975 |
| NZS-6 | Centre Drive | 6 | 3 | 62 | 3 | 8700 |
| NZS-9 | Centre Drive | 9 | 3 | 140 | 3 | 16682 |
| NZS-12 | Centre Drive | 12 | 3.5 | 250 | 3 | 33131 |
| NG-15 | Peripheral Roller Drive | 15 | 3.5 | 390 | 5.5 | 9120 |
| NG-18 | Peripheral Roller Drive | 18 | 3.5 | 560 | 5.5 | 10000 |
| NG-24 | Peripheral Roller Drive | 24 | 3.7 | 1000 | 7.5 | 24000 |
| NG-30 | Peripheral Roller Drive | 30 | 3.6 | 1570 | 7.5 | 26420 |
| NT-15 | Peripheral Rack Gear Drive | 15 | 3.5 | 390 | 5.5 | 11000 |
| NT-18 | Peripheral Rack Gear Drive | 18 | 3.5 | 560 | 5.5 | 12120 |
| NT-24 | Peripheral Rack Gear Drive | 24 | 3.7 | 1000 | 7.5 | 28270 |
| NT-30 | Peripheral Rack Gear Drive | 30 | 3.6 | 1570 | 7.5 | 30888 |
| NT-45 | Peripheral Rack Gear Drive | 45 | 5.1 | 2400 | 11 | 58640 |
| NT-50 | Peripheral Rack Gear Drive | 50 | 4.5 | 3000 | 11 | 65920 |
| NT-53 | Peripheral Rack Gear Drive | 53 | 5.1 | 3400 | 11 | 69410 |
KEY FEATURES
2. Multiple Transmission Options Available with center-drive or peripheral-drive configurations for different operating requirements.
3. Suitable for Different Process Streams Commonly used for concentrates, middlings and tailings in mineral processing plants.
4. Wide Industrial Application Suitable for mineral processing, metallurgy, chemical processing, coal processing and environmental protection applications.
Applications
Concentrate thickening
Middling thickening
Tailings thickening
Mineral processing plants
Metallurgical processing
Coal processing
Chemical processing
Environmental protection
Working Principle
The Pulp Thickener increases slurry concentration during mineral processing, providing a suitable pulp density for subsequent processing or dewatering operations. It can be configured with either a center-drive or peripheral-drive transmission system according to different processing requirements.
