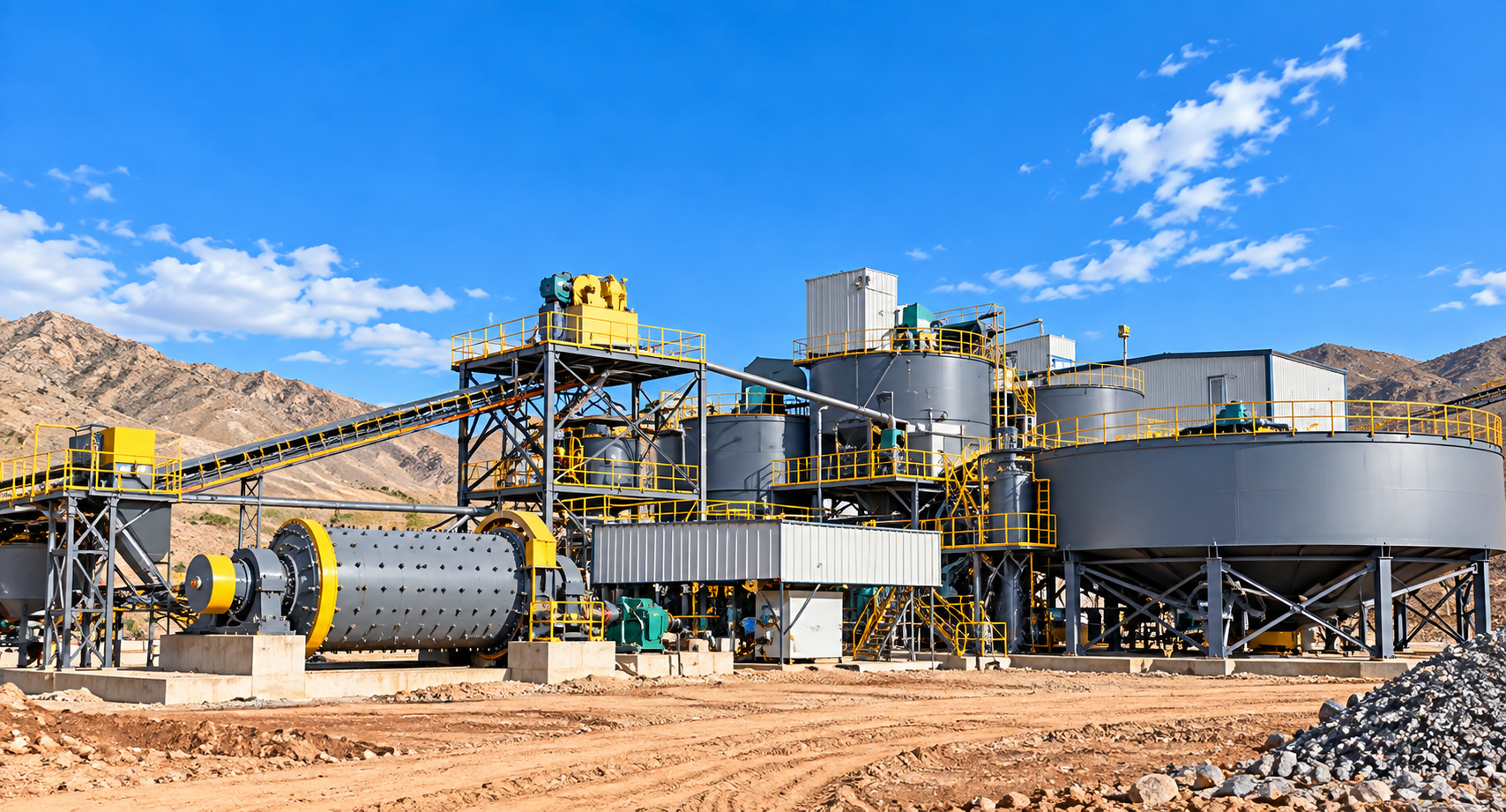

Gold CIP/CIL Plant
Gold CIP/CIL Plant is a complete gold processing solution integrating crushing, grinding, classification, thickening, cyanide leaching, activated carbon adsorption, electrolysis and smelting. The plant can be configured according to ore characteristics and processing requirements to provide an integrated gold recovery solution.
DESCRIPTION
Gold CIP/CIL Plant is a complete gold processing solution designed for the extraction and recovery of gold through cyanide leaching and activated carbon adsorption.
According to the product catalog's CIL process, raw gold ore is first crushed to less than 20 mm, followed by grinding and classification to approximately 90% passing 200 mesh. The finely ground slurry then enters the thickener for concentration before being transferred to the leaching stage.
During leaching, chemical reagents are added to dissolve the gold. Activated carbon is then used to adsorb the dissolved gold and produce gold-loaded carbon. The loaded carbon is subsequently processed through electrolysis equipment, followed by smelting to obtain the final gold product.
Gold CIL Process
Crushing: Raw material crushed to <20 mm
Grinding & Classification: Approximately 90% passing 200 mesh
Thickening: Fine slurry enters the thickener for concentration
Leaching: Chemical reagents are added in the leaching tank
Carbon Adsorption: Activated carbon adsorbs dissolved gold to produce gold-loaded carbon
Gold Recovery: Electrolysis equipment and subsequent furnace treatment are used to obtain the final gold product.
Main Equipment
| Process Stage | Main Equipment |
| Crushing | Crusher |
| Grinding | Ball Mill |
| Classification | Classification Equipment |
| Thickening | Pulp Thickener |
| Leaching | Double-Impeller Leaching Agitation Tank |
| Carbon Adsorption | Leaching / Carbon Adsorption Tank |
| Desorption & Electrolysis | Desorption Electrolysis Equipment |
| Final Recovery | Smelting Furnace |
KEY FEATURES
1. Complete Gold Processing Solution Integrates multiple processing stages from ore preparation and grinding to leaching, carbon adsorption and final gold recovery.
2. Integrated Leaching & Carbon Adsorption Activated carbon is used to adsorb dissolved gold after cyanide leaching, producing gold-loaded carbon for subsequent recovery.3. Complete Gold Recovery Process Gold-loaded carbon can be further processed through desorption/electrolysis equipment and smelting for final gold recovery.
4. Flexible Plant Configuration The crushing, grinding, thickening, leaching and recovery equipment can be configured as an integrated processing line according to project requirements.
Applications
Gold Ore Processing โข Gold Cyanidation โข Gold Leaching โข Activated Carbon Adsorption โข Gold Recovery
