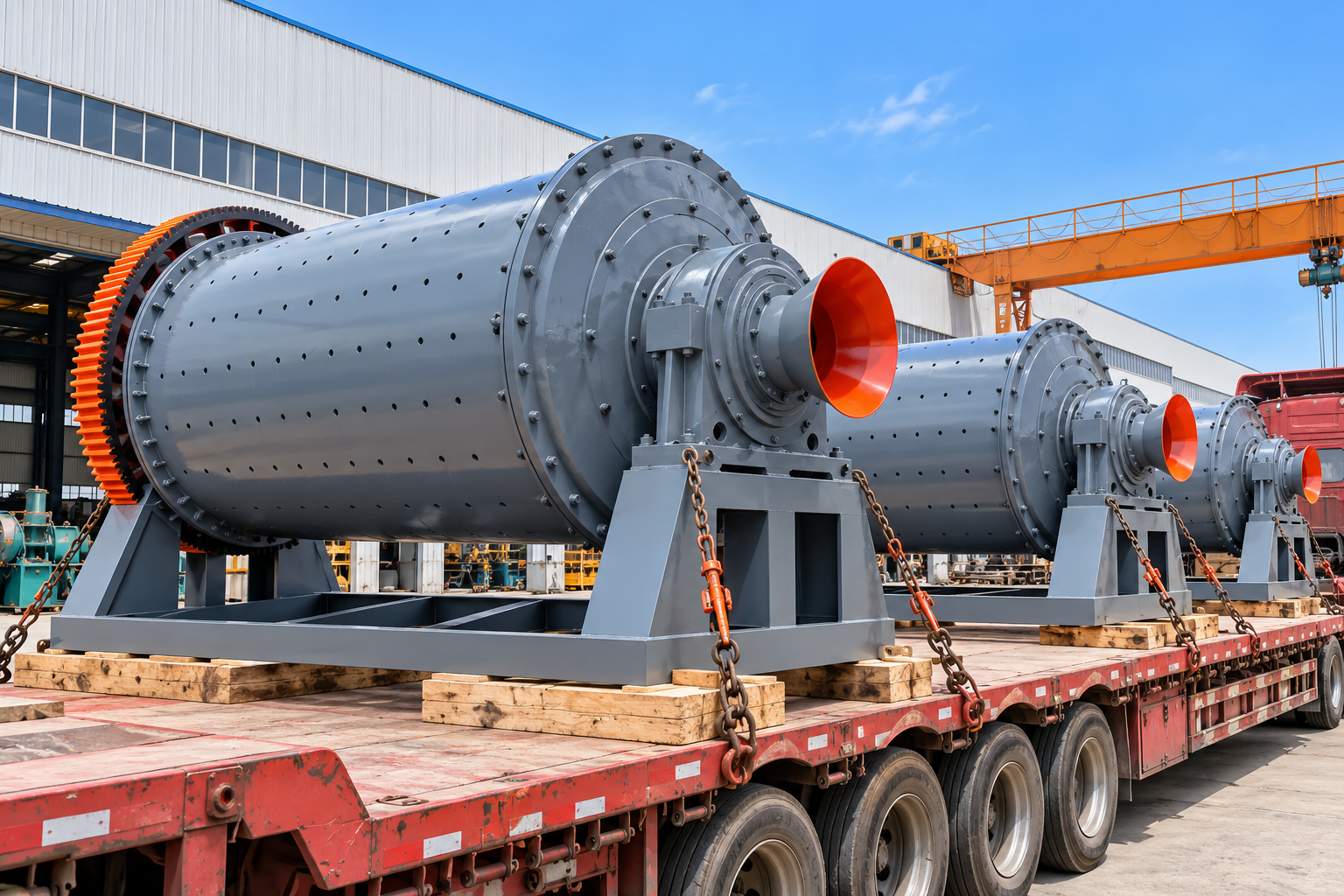

Ball Mill
Ball Mill is a reliable grinding machine for mineral processing applications, suitable for fine grinding, regrinding and multi-stage grinding circuits. Wet or dry grinding configurations are available according to different processing requirements.
DESCRIPTION
The Ball Mill is an essential grinding machine for mineral processing, designed to reduce crushed ore to the required particle size for subsequent beneficiation processes. It is suitable for single-stage fine grinding, regrinding, and the second stage of two-stage grinding circuits.
Depending on the processing requirements, the ball mill can be configured for wet or dry grinding. Standard configurations are designed to produce final particle sizes ranging from approximately 0.074 to 0.4 mm, making the equipment suitable for a wide range of mineral processing applications.
SPECIFICATIONS
Haoyang Ball Mills are available in a wide range of sizes to meet different ore grinding and processing capacity requirements. The series offers processing capacities from 0.5 to 100 t/h, maximum feed sizes up to 25 mm, and output sizes ranging from 0.074 to 0.4 mm. Multiple models are available for small, medium and large mineral processing plants.
| Model | Rotational Speed (r/min) | Ball Load (t) | Max. Feed Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ900×1200 | 36 | 1 | ≤20 | 0.074–0.4 | 0.5–1.5 | 18.5 | 4 |
| Φ900×1800 | 36 | 1.5 | ≤20 | 0.074–0.4 | 1.1–3.5 | 22 | 4.8 |
| Φ1200×2400 | 31 | 3.5 | ≤25 | 0.074–0.4 | 1.6–5 | 30 | 9.5 |
| Φ1200×4500 | 31 | 6.5 | ≤25 | 0.074–0.4 | 1.6–5.8 | 45 | 13.1 |
| Φ1500×3000 | 33.8 | 6.8 | ≤25 | 0.074–0.4 | 2–6.3 | 75 | 16 |
| Φ1500×4500 | 33.8 | 10 | ≤25 | 0.074–0.4 | 3–9 | 110 | 19 |
| Φ1830×3000 | 23.8 | 10 | ≤25 | 0.074–0.4 | 4–11 | 130 | 25 |
| Φ1830×3600 | 23.8 | 12 | ≤25 | 0.074–0.4 | 4.3–12 | 155 | 32 |
| Φ1830×4500 | 25 | 15 | ≤25 | 0.074–0.4 | 4.5–16 | 155 | 33.7 |
| Φ2100×3600 | 23.8 | 16 | ≤25 | 0.074–0.4 | 6–17 | 210 | 45.8 |
| Φ2200×4500 | 23.7 | 22 | ≤25 | 0.074–0.4 | 9–25 | 280 | 46.5 |
| Φ2400×4500 | 21 | 26 | ≤25 | 0.074–0.4 | 10–32 | 380 | 65 |
| Φ2700×4500 | 20.7 | 33 | ≤25 | 0.074–0.4 | 15–40 | 430 | 97 |
| Φ3200×4500 | 19 | 82 | ≤25 | 0.074–0.4 | 18–55 | 680 | 156.5 |
| Φ3600×4500 | 17 | 59 | ≤25 | 0.074–0.4 | 30–100 | 850 | 162 |
KEY FEATURES
2. Wet & Dry Grinding Options The ball mill can be configured for either wet or dry grinding according to processing requirements.
3. Flexible Grinding Circuits Suitable for single-stage fine grinding, regrinding and the second stage of two-stage grinding circuits.
4. Wide Mineral Processing Application Designed as grinding equipment for mineral beneficiation processes.
5. Multiple Model Options Different mill sizes and configurations can be selected according to required processing capacity and grinding conditions.
Applications
Gold Ore • Copper Ore • Iron Ore • Lead-Zinc Ore • Other Mineral Ores
Working Principle
The Ball Mill operates through the rotation of a cylindrical grinding chamber containing grinding media. As the cylinder rotates, the grinding media continuously impacts and grinds the material, reducing the ore to the required particle size. The ground material is then discharged for subsequent classification or beneficiation processes.
