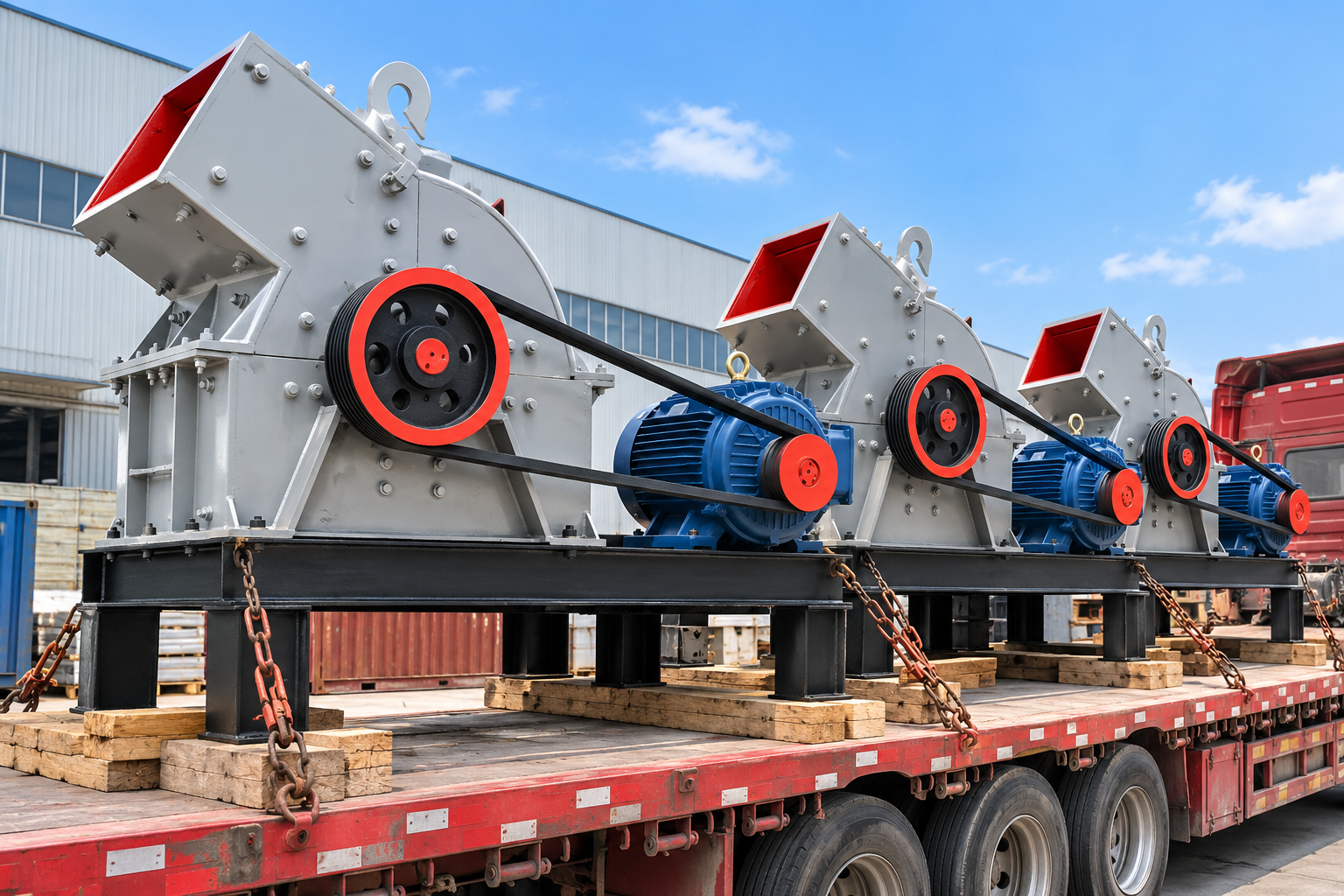

Hammer Crusher
Hammer Crusher is designed for efficient crushing of limestone, slag, coke, coal and other medium-hard materials. Available in different rotor and hammer-row configurations, it is widely used in cement, metallurgy, chemical processing and power generation industries.
DESCRIPTION
The Hammer Crusher is designed for crushing medium-hard materials through high-speed impact crushing.
According to the product catalog, hammer crushers are available in single-rotor and double-rotor configurations. Single-rotor models can be further divided into reversible and irreversible types, while different configurations are also available according to the number of hammer rows.
It is widely used in cement, chemical, electric power and metallurgical industries for crushing limestone, slag, coke, coal and other medium-hard materials.
SPECIFICATIONS
| Model | Max. Feed Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| PC300×200 | ≤50 | ≤10 | 1–2 | 5.5 | 0.4 |
| PC400×300 | ≤100 | ≤10 | 5–10 | 11 | 0.8 |
| PC600×400 | ≤120 | ≤15 | 10–25 | 22 | 1.5 |
| PC800×600 | ≤120 | ≤15 | 20–35 | 55 | 3.1 |
| PC1000×800 | ≤200 | ≤13 | 20–40 | 75 | 7.9 |
| PC1000×1000 | ≤200 | ≤15 | 30–80 | 90 | 8.65 |
| PC1200×1000 | ≤250 | ≤19 | 80–200 | 132 | 13.6 |
KEY FEATURES
2. Reversible & Irreversible Options Single-rotor hammer crushers can be configured as reversible or irreversible types.
3. Flexible Hammer Arrangement Different single-row and multi-row hammer configurations are available according to crushing requirements.
4. Suitable for Medium-Hard Materials Designed for crushing limestone, slag, coke, coal and other medium-hard materials.
5. Wide Industrial Application Suitable for cement, chemical, electric power, metallurgy and related industrial crushing applications.
Applications
Limestone • Slag • Coke • Coal • Other Medium-Hard Materials
Working Principle
Material enters the crushing chamber and is broken by the impact of the rotating hammers. The crushing process continues until the material reaches the required size and is discharged from the crusher.
