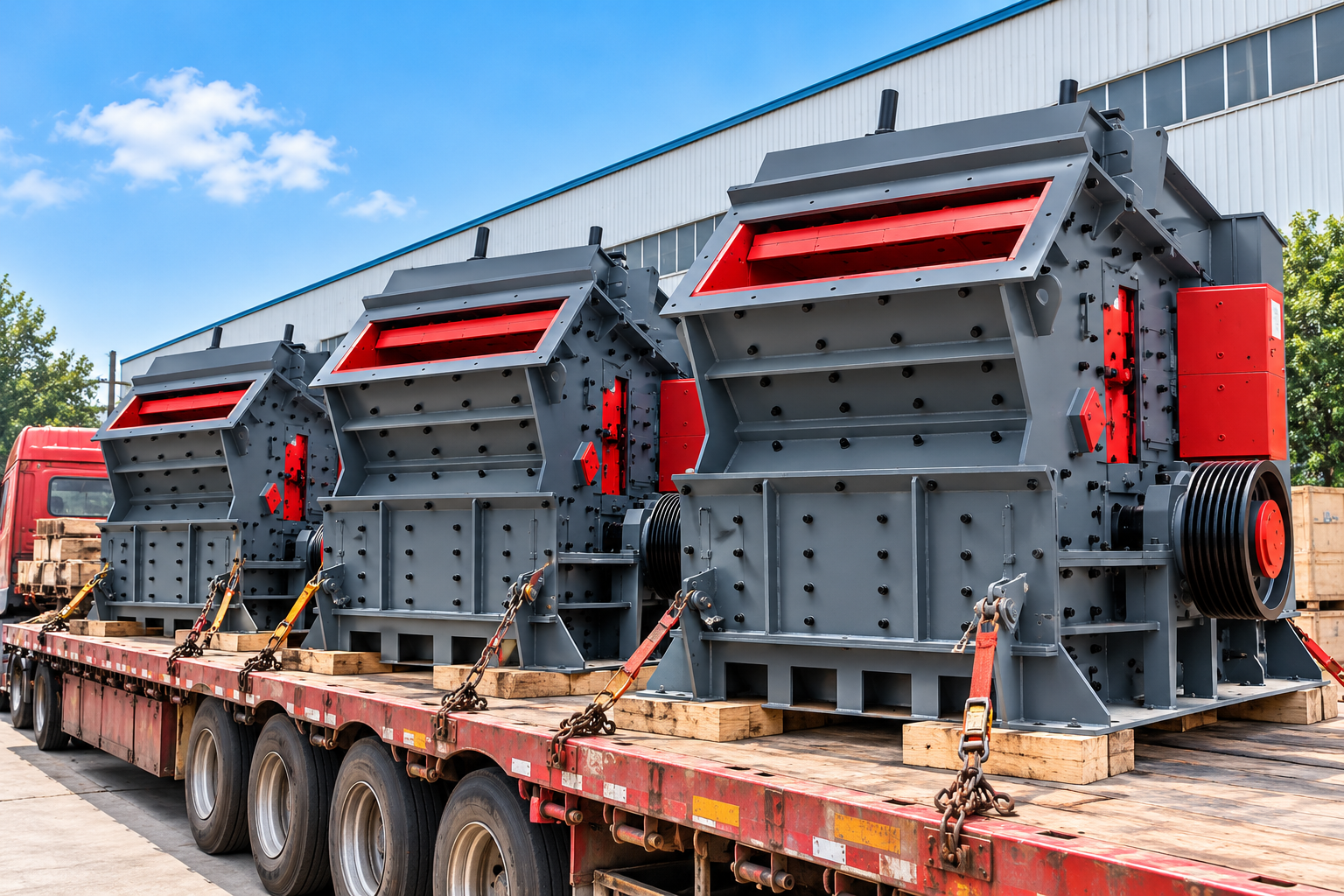

Impact Crusher
Impact Crusher is designed for efficient stone and aggregate crushing applications. Featuring a three-chamber crushing structure, wear-resistant blow bars and an optimized impact liner design, it provides reliable crushing performance and convenient maintenance for stone production, highway and infrastructure projects.
DESCRIPTION
The Impact Crusher is designed for efficient crushing in stone production and aggregate processing applications. According to the product catalog, it is widely used in hydroelectric projects, highway construction and other stone production applications.
The crusher features a three-chamber crushing design, an integrated rotor structure and wear-resistant blow bars for reliable crushing performance. A toothed impact liner improves material crushing efficiency, while the optimized frame and opening mechanism make inspection and maintenance more convenient.
SPECIFICATIONS
| Model | Rotor Size (mm) | Feed Opening (mm) | Max. Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| PF-1008 | ฮฆ1000ร800 | 400ร830 | 300 | 30โ50 | 37โ55 |
| PF-1010 | ฮฆ1000ร1050 | 400ร1080 | 350 | 50โ80 | 55โ75 |
| PF-1210 | ฮฆ1250ร1050 | 400ร1080 | 350 | 70โ120 | 110โ132 |
| PF-1214 | ฮฆ1250ร1400 | 400ร1430 | 400 | 130โ180 | 160โ200 |
| PF-1315 | ฮฆ1320ร1500 | 680ร1520 | 400 | 160โ250 | 180โ260 |
| PF-1320 | ฮฆ1320ร2000 | 680ร2030 | 400 | 300โ350 | 300โ375 |
KEY FEATURES
2. Wear-Resistant Blow Bars The rotor is equipped with wear-resistant crushing components designed for demanding stone crushing operations.
3. Toothed Impact Liner A toothed impact liner design is used to improve crushing effectiveness during material impact.
4. Reliable Rotor Structure The catalog specifies a seamlessly connected rotor structure designed for stable crushing operation.
5. Easy Maintenance The optimized bearing-seat and frame design, together with screw or hydraulic opening devices, makes inspection and maintenance more convenient.
Applications
Stone Production Line โข Hydroelectric Projects โข Highway Construction โข Other Stone Crushing Applications
Working Principle
Material enters the crushing chamber and is crushed through impact action between the rotating crushing components and impact liners. The three-chamber design provides effective size reduction before the crushed material is discharged for subsequent processing.
