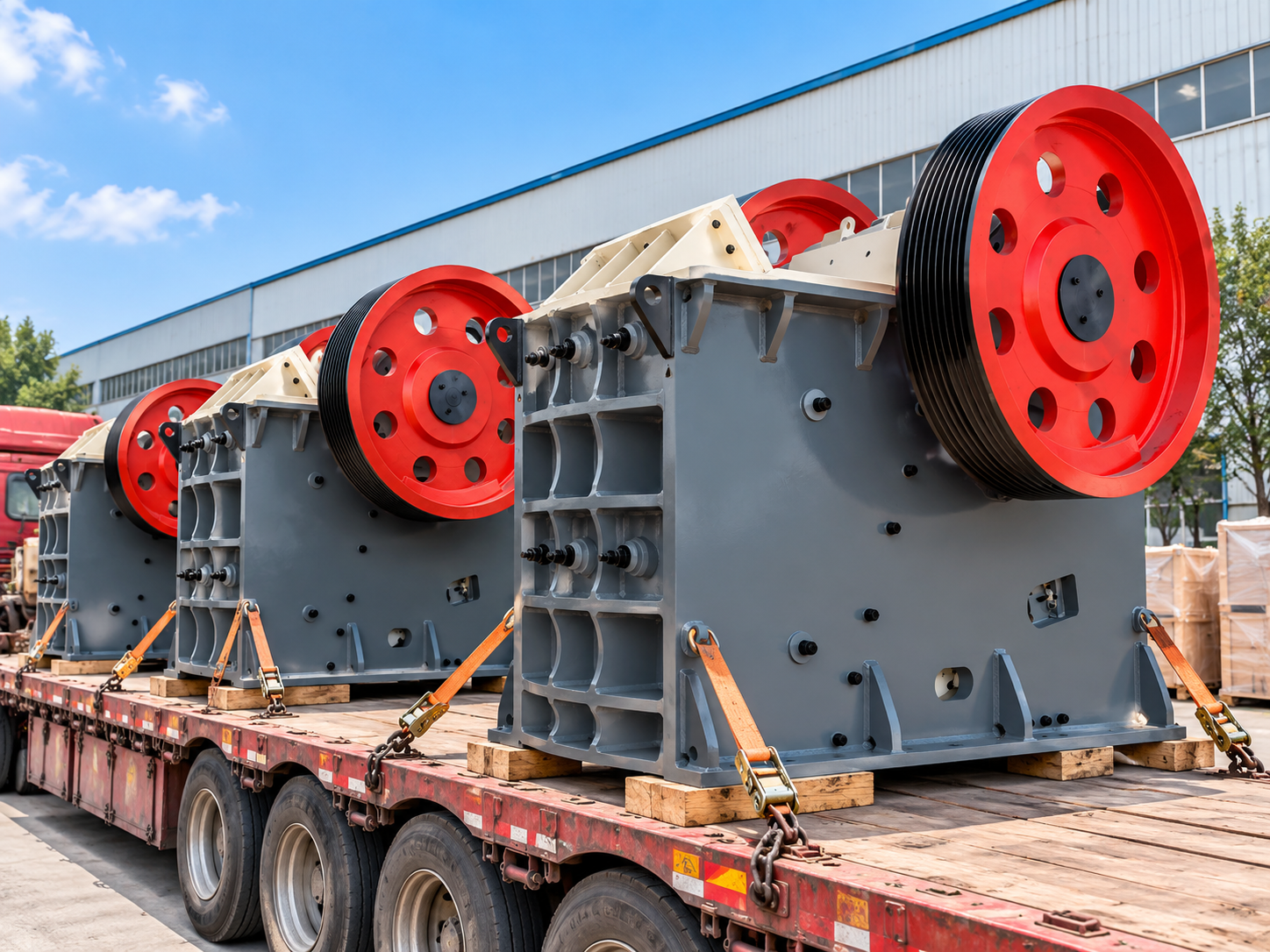

Jaw Crusher
Jaw Crusher is a robust and reliable primary crushing machine for ores and rocks with compressive strength up to 350 MPa. Featuring a high crushing ratio, simple structure and easy maintenance, it is widely used in mining, construction, metallurgy and infrastructure projects.
DESCRIPTION
The Jaw Crusher is a reliable primary crushing machine designed for crushing a wide range of ores and rocks.
It features a high crushing ratio, simple structure, reliable operation, easy maintenance and economical operating cost, making it suitable for demanding crushing applications.
According to the product catalog, the jaw crusher is widely used in mining, smelting, building materials, highway construction, railway construction, water conservancy and chemical industries, and is suitable for materials with a compressive strength of up to 350 MPa.
SPECIFICATIONS
| Model | Feed Opening (mm) | Max. Feed Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Speed (r/min) | Motor Power (kW) | Weight (t) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| PE150ร250 | 150ร250 | 125 | 10โ40 | 1โ3 | 260 | 5.5 | 1.1 | 1000ร870ร990 |
| PE250ร400 | 250ร400 | 210 | 20โ60 | 5โ20 | 300 | 15 | 3.2 | 1300ร1090ร1270 |
| PE400ร600 | 400ร600 | 340 | 40โ100 | 16โ60 | 275 | 30 | 7 | 1730ร1730ร1630 |
| PE400ร900 | 400ร900 | 340 | 40โ100 | 40โ110 | 275 | 55 | 11 | 1905ร2030ร1658 |
| PE500ร750 | 500ร750 | 425 | 50โ100 | 40โ110 | 275 | 55 | 12 | 1980ร2080ร1870 |
| PE600ร900 | 600ร900 | 500 | 65โ160 | 50โ180 | 250 | 75 | 17 | 2190ร2206ร2300 |
| PE750ร1060 | 750ร1060 | 630 | 80โ140 | 110โ320 | 250 | 110 | 31 | 2660ร2430ร2800 |
| PE900ร1200 | 900ร1200 | 750 | 95โ165 | 220โ450 | 200 | 160 | 52 | 3380ร2870ร3330 |
| PE1000ร1200 | 1000ร1200 | 850 | 195โ265 | 315โ500 | 200 | 160 | 55 | 3480ร2876ร3330 |
| PE1200ร1500 | 1200ร1500 | 1020 | 150โ350 | 400โ800 | 180 | 220 | 93 | 4200ร3300ร3500 |
| PE1500ร1800 | 1500ร1800 | 1200 | 220โ350 | 500โ1000 | 180 | 280 | 122 | 5160ร3660ร4248 |
| PEX150ร750 | 150ร750 | 120 | 18โ48 | 8โ25 | 320 | 15 | 3.8 | 1200ร1530ร1060 |
| PEX250ร750 | 250ร750 | 210 | 15โ60 | 13โ35 | 330 | 30 | 6.5 | 1380ร1750ร1540 |
| PEX250ร1000 | 250ร1000 | 210 | 15โ60 | 16โ52 | 330 | 37 | 7 | 1560ร1950ร1390 |
| PEX250ร1200 | 250ร1200 | 210 | 15โ60 | 20โ61 | 330 | 45 | 9.7 | 2140ร2096ร1500 |
| PEX300ร1300 | 300ร1300 | 250 | 20โ90 | 16โ105 | 300 | 55 | 15.6 | 2720ร2210ร1600 |
KEY FEATURES
2. Simple & Robust Structure A straightforward structural design supports reliable operation in demanding crushing applications.
3. Reliable Operation Built for stable operation across mining, construction and industrial crushing applications.
4. Easy Maintenance The simple machine structure helps make routine inspection and maintenance more convenient.
5. Economical Operation The product catalog highlights economical operating cost as one of the main advantages of the jaw crusher.
Applications
Industries: Mining โข Smelting โข Building Materials โข Highway Construction โข Railway Construction โข Water Conservancy โข Chemical Industry
Material Requirement: Compressive strength โค350 MPa.
Working Principle
The Jaw Crusher is used as a primary crushing machine to reduce large pieces of ore or rock to a smaller size for subsequent crushing, grinding or beneficiation processes.
